SunXtender Batteries are proudly made in the USA.
SunXtender Solar Battery
Sun Xtender® PVX-2560T Solar Battery Specifications
Printable PVX-2560T data sheet

Industry
Reference
Voltage Nominal Capacity Ampere Hours @ 25° C (77° F) to 1.75 Volts per cell Length Width Height Weight
1
Hour
Rate
2
Hour
Rate
4
Hour
Rate
8
Hour
Rate
24
Hour
Rate
48
Hour
Rate
72
Hour
Rate
100
Hour
Rate
120
Hour
Rate
in mm in mm in mm Lbs Kg
Group 31
6v
158 Ah 200 Ah 206 Ah 226 Ah 256 Ah 278 Ah 288 Ah 292 Ah 298 Ah 12.90  328  6.75  171  8.96  228  75 34.0

Specifications subject to change without notice.

VRLA-AGM Deep Cycle Battery for Off Grid and Grid Tied Systems.

Sun Xtender pioneered renewable energy storage batteries for Off Grid and Grid Tied Systems.

Since 1987, Sun Xtender has been designing valve regulated lead acid batteries with AGM construction (VRLA-AGM).The AGM construction means no water replenishment ever.

Utilizing pure lead calcium grids, the plates are thicker than the industry standard for longer cycle life, increased reliability and power. The low impedance AGM design allows for excellent charge acceptance and there is no current limit required with controlled voltage charging.

The Sun Xtender product line features proprietary PolyGuard® Microporous Polyethylene Separators, shielding the positive plates against shorting, shock or vibration. No other manufacturer offers this dual layer insulation with its effective protection feature.

Sun Xtender battery covers and containers are uniquely molded with high impact, reinforced copolymer polypropylene and are designed with thick end walls to prevent bulging. The copper alloy T Terminals are corrosion resistant and are supplied with silicon bronze bolts and washers.

All SunXtender Batteries ship Hazmat Exempt.

See the Sun Xtender Battery Technical Manual for details on applications and specifications.

PVX-2560T applications include Traffic Arrow / Message Boards, Cathodic Protection, Grid Tied & Off Grid Homes, SCADA, Medical Refrigeration Clinics, Power for Remote Areas / Developing Nations, Microwave Earth / Satellite Stations, Parking Lot Lighting.

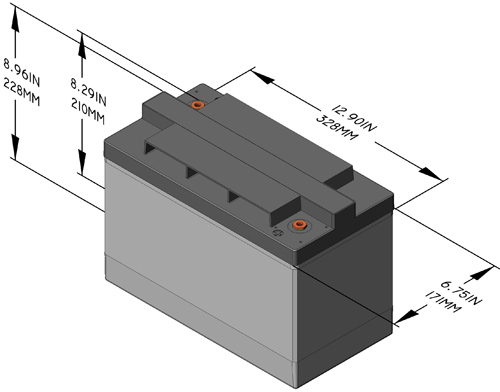

PVX-2560T Battery Outline Drawing

Terminal Options for PVX-2560T
