SunXtender Batteries are proudly made in the USA.
SunXtender Solar Battery
Sun Xtender® PVX-2580L Solar Battery Specifications
Printable PVX-2580L data sheet

Industry
Reference
Voltage Nominal Capacity Ampere Hours @ 25° C (77° F) to 1.75 Volts per cell Length Width Height Weight
1
Hour
Rate
2
Hour
Rate
4
Hour
Rate
8
Hour
Rate
24
Hour
Rate
48
Hour
Rate
72
Hour
Rate
100
Hour
Rate
120
Hour
Rate
in mm in mm in mm Lbs Kg
Group 8D
12v
165 Ah 209 Ah 214 Ah 236 Ah 258 Ah 285 Ah 295 Ah 300 Ah 305 Ah 20.76  527  10.89  277  9.77  248  159 72.1

Specifications subject to change without notice.

VRLA-AGM Deep Cycle Battery for Off Grid and Grid Tied Systems.
Recombinant gas Sun Xtender® Series solar batteries are low resistance, valve regulated lead acid (VRLA) batteries.

Since 1987, Sun Xtender has been designing valve regulated lead acid batteries with AGM construction (VRLA-AGM).The non-spillable construction allows the battery to be used upright or on its end or side and the maintenance free AGM design means no water replenishment ever.

Utilizing pure lead calcium grids, Sun Xtender deep cycle battery plates are thicker than the industry standard for longer cycle life, increased reliability and power. The low impedance AGM design allows for excellent charge acceptance and there is no current limit required with controlled voltage charging.

The Sun Xtender battery product line features proprietary PolyGuardâ„¢ Microporous Polyethylene Separators, shielding the positive plates against shorting, shock or vibration. No other manufacturers offer this dual layer insulation protection feature.

Sun Xtender battery covers and containers are uniquely molded with high impact, reinforced copolymer polypropylene and are designed with thick end walls to prevent bulging. The solid copper L Blade Terminals are corrosion resistant and are supplied with silicon bronze bolts, washers, and nuts.

All SunXtender Batteries ship Hazmat Exempt.

See the Sun Xtender Battery Technical Manual for details on PVX-2580L applications and specifications. This Sun Xtender solar battery document is also available for download and printing.

PVX-2580L is used for applications such as Traffic Arrow / Message Boards, Cathodic Protection, Gried Tied & Off Grid Homes, 2-Way Radio Repeaters, SCADA, Navigational Aids, Medical Refrigeration Clinics & Power for Remote Areas / Developing Nations, Microwave Earth / Satellite Stations, Parking Lot Lighting.


PVX-2580L Battery Outline Drawing

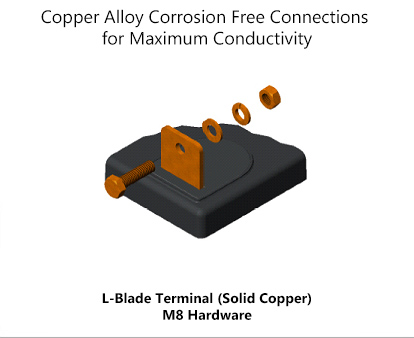

Terminal Options for PVX-2580L
