SunXtender Batteries are proudly made in the USA.
SunXtender Solar Battery
Sun Xtender® PVX-6240T Solar Battery Specifications
Printable PVX-6240T data sheet

Industry
Reference
Voltage Nominal Capacity Ampere Hours @ 25° C (77° F) to 1.75 Volts per cell Length Width Height Weight
1
Hour
Rate
2
Hour
Rate
4
Hour
Rate
8
Hour
Rate
24
Hour
Rate
48
Hour
Rate
72
Hour
Rate
100
Hour
Rate
120
Hour
Rate
in mm in mm in mm Lbs Kg
Group 27
2v
390 Ah 492 Ah 510 Ah 558 Ah 624 Ah 672 Ah 696 Ah 710 Ah 720 Ah 12.01  305  6.60  168  8.93  227  65 29.5

Specifications subject to change without notice.

VRLA-AGM Deep Cycle Battery for Off Grid and Grid Tied Systems.

Sun Xtender batteries provide safe, reliable and long lasting power.

Environmentally friendly, there is no exposed lead on Sun Xtender batteries
100 percent recyclable
Sustainable, Clean, Renewable Energy Storage.

Since 1987, Sun Xtender solar batteries have been hand crafted for quality in the U.S.A. Valve regulated lead acid batteries with AGM construction (VRLA-AGM) is the original AGM design adopted by the military. Non-spillable construction prohibits any electrolyte leaking or spewing, allowing the battery to be used upright or on its end or side. The maintenance free AGM design means no water replenishment - ever.

Utilizing pure lead calcium grids, the Sun Xtender battery plates are thicker than the industry standard for longer cycle life, increased reliability and power. The low impedance AGM design allows for excellent charge acceptance and there is no current limit required with controlled voltage charging.

The Sun Xtender Battery product line features proprietary PolyGuard® Microporous Polyethylene Separators, shielding the positive plates against shorting, shock or vibration. No other manufacturers offer this dual layer insulation protection feature.

Sun Xtender Battery covers and containers are uniquely molded with high impact, reinforced copolymer polypropylene and are designed with thick end walls to prevent bulging. The copper alloy T Terminals are corrosion resistant and are supplied with silicon bronze bolts and washers.

All Sun Xtender Batteries ship Hazmat Exempt.

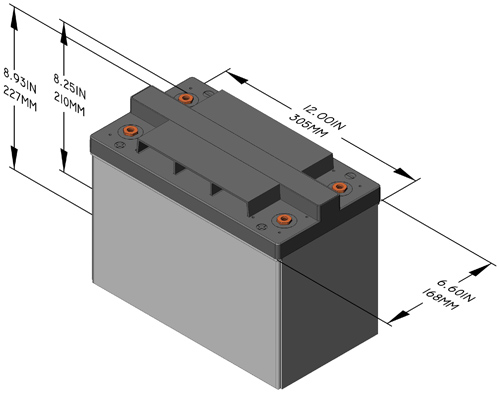

PVX-6240T Battery Outline Drawing

Terminal Options for PVX-6240T
